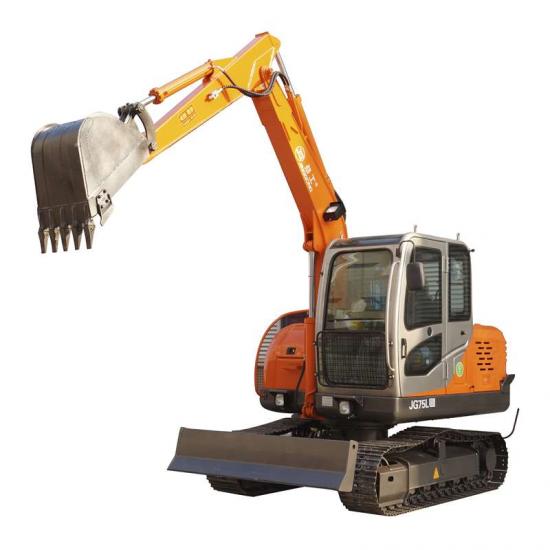

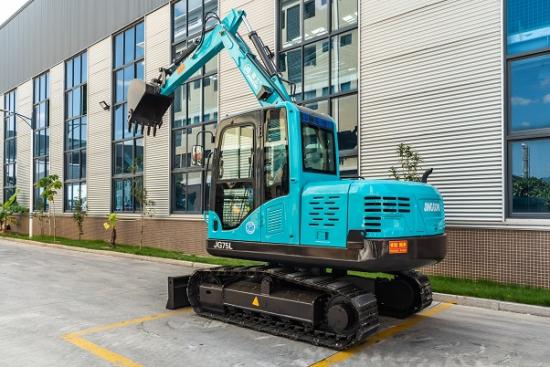

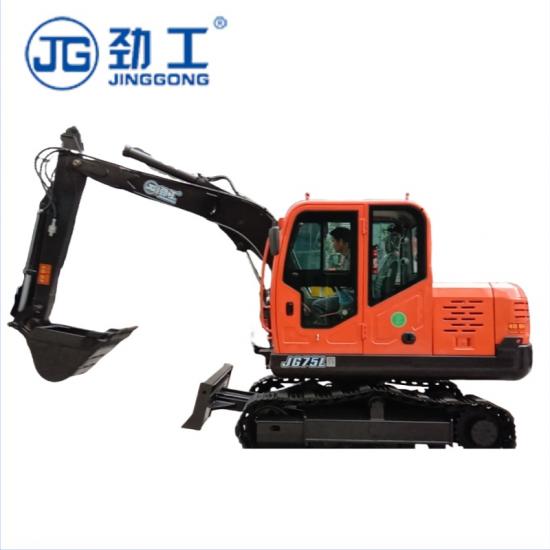

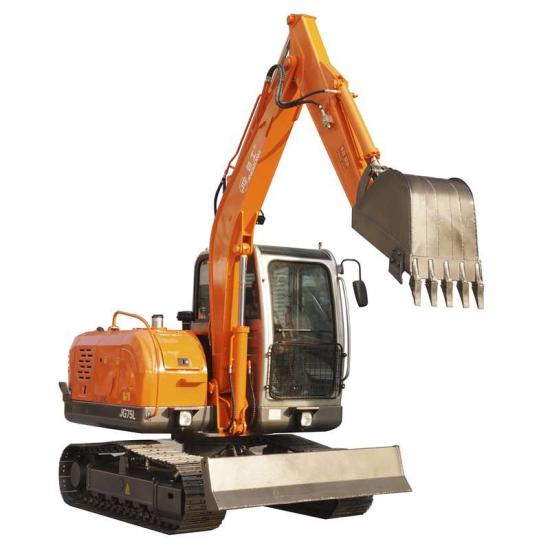

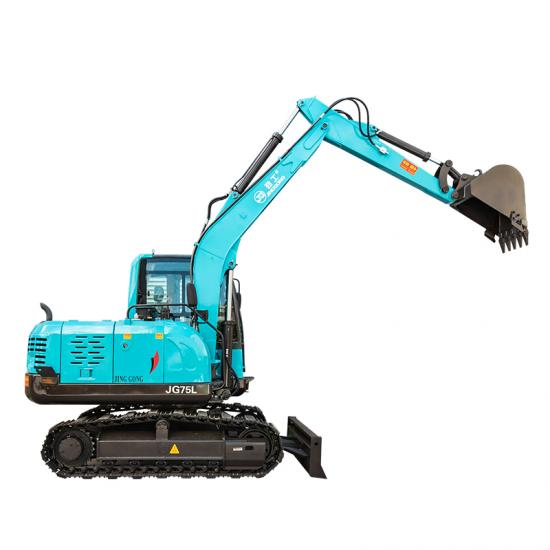

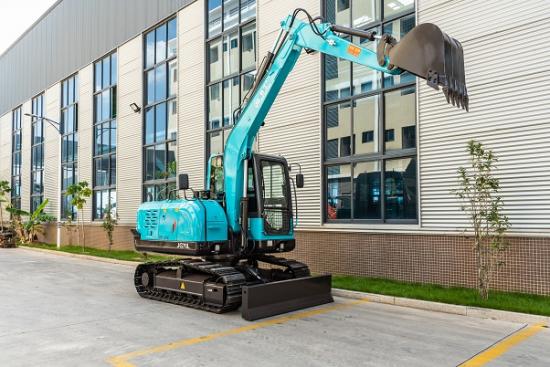

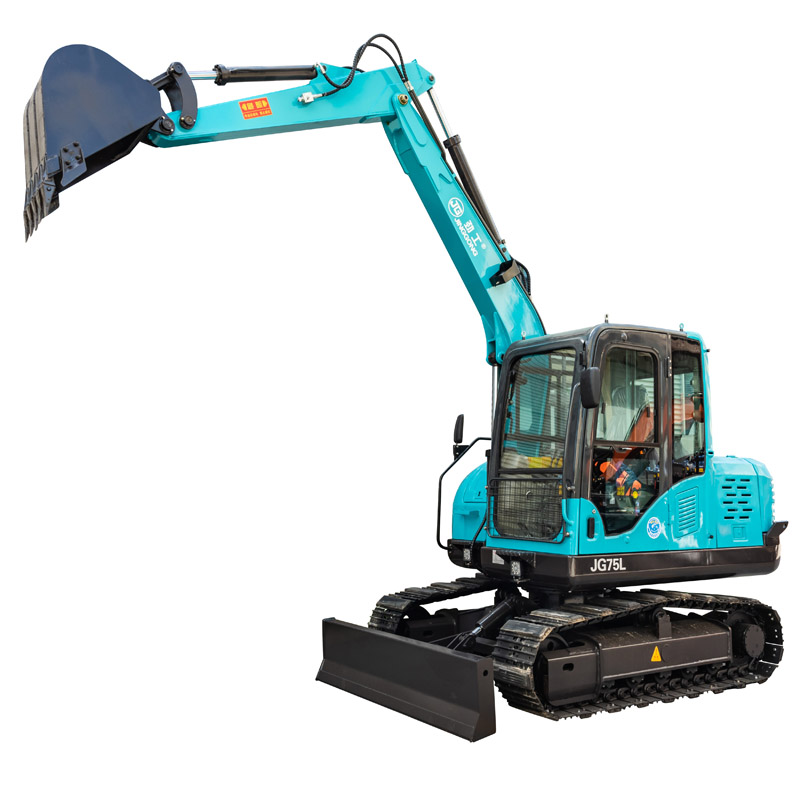

Jinggong 6 tons track hoe excava🌱tor with backhoe
l Features:
1. The ground pressure is small, and the ability to pass on𝓰 soft ground is strong.
2. The cab uses silicone oil shock absorbers to improve driving comfort.
3. Adopt new seat, new armrest box and safety lock.
l Main Parameters:
(Length*width*height) travel position
5500*2100*2650mm
Machine weight
6300kg
Rated Power
48KW/58.8KW
l Process:
l Certificates:
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maximum Digging Reach | 6350mm | |||||||||
| Maximum Digging Depth | 3570mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6600mm | |||||||||
| Maximum Dumping Height | 4500mm | |||||||||
| Back-end radius of gyration | 1800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5500*2100*2650mm | ||||||||
| Distance From The arm to Rotate Machine | 3600mm | |||||||||
| Gauge base | 2060mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6300kg | |||||||||
| Engine model | YN36GB2/4102 | |||||||||
| Rated Power | 48KW/58.8KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 120L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| (High speed/low speed) | 4.5/2.5km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.25m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
